Remote desktop (RDP & VNC)

RDP and VNC are the two graphical connection types. On Windows, an RDP session is a tab: a Windows server sits in the same window and the same tab bar as your SSH sessions, and you switch between them the way you switch between terminals. On macOS and Linux an RDP session opens in a separate client application: Microsoft's Windows App on macOS, and a FreeRDP client on Linux.

Creating an RDP connection

Pick RDP and fill in host, port (3389 by default), username and password. Two RDP-specific fields follow:

  • domain (optional) — a Windows domain; the dialog's own example is CORP. Leave it empty for a local account on the target.
  • Force fresh session before connecting — off by default, and a Windows-only path. With it on, OpsPilot first logs off any existing disconnected session for that user on the target, over WinRM, so the server starts a fresh logon at the exact resolution asked for instead of resuming a stale session at its old size. It needs WinRM enabled and reachable on the target, and it never blocks the connect: if the logoff fails, the connection proceeds anyway.

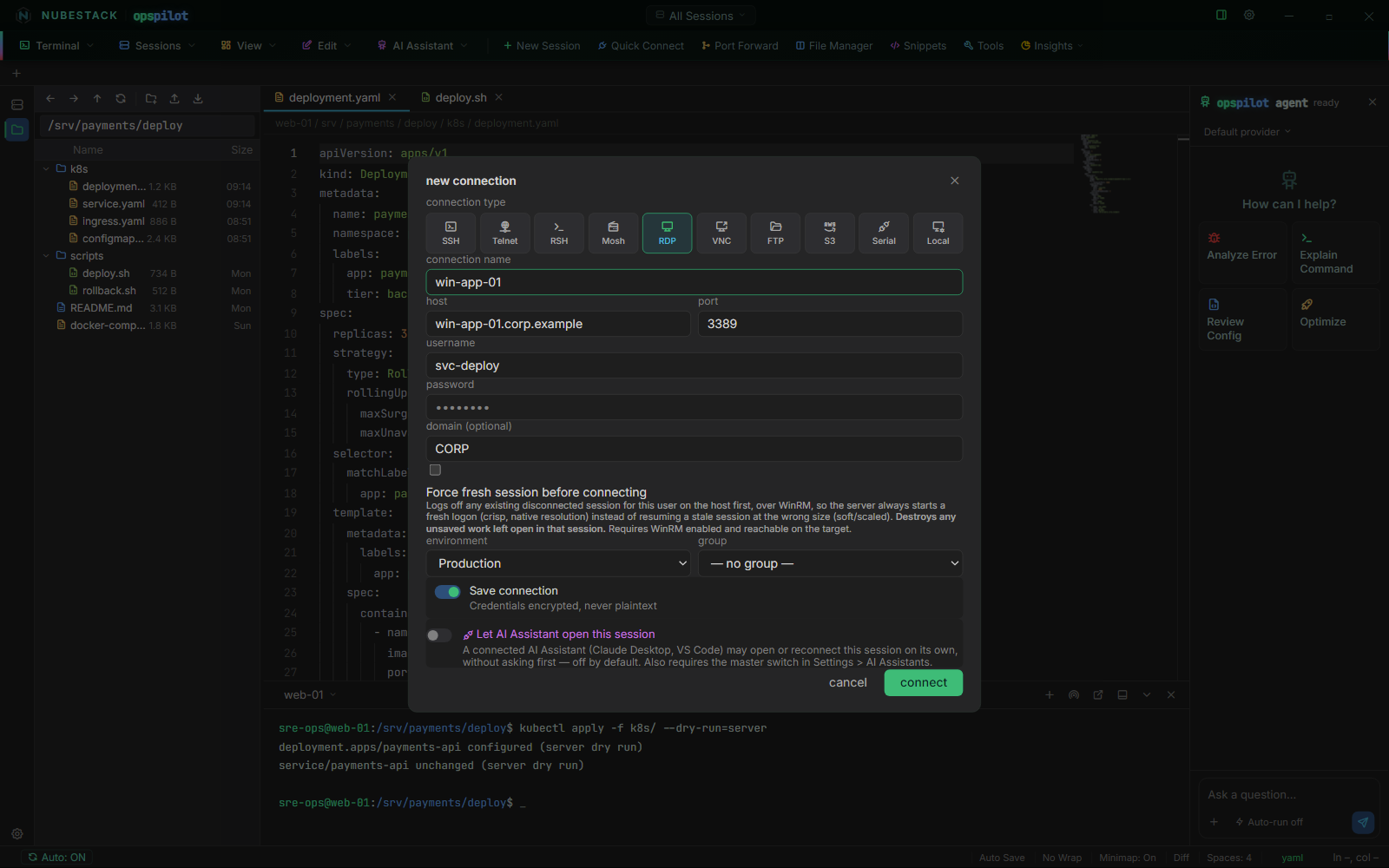

Creating an RDP connection to a Windows server, with domain and session options

An RDP connection. The domain field is optional, and Force fresh session before connecting is the option to reach for when a resumed session comes back at the wrong resolution.

Force fresh session destroys unsaved work

Logging off a disconnected session discards anything left unsaved in it. If someone else's disconnected session is on that host under the same account, this takes it with them.

RDP per platform

Platform What an RDP session is What you need installed
Windows An embedded in-app tab, positioned over the session stage. It can also be detached into its own window. Nothing. FreeRDP ships with the Windows build.
macOS A session in Microsoft's Windows App. OpsPilot writes a standard .rdp file for the connection and opens it with Windows App, which runs as its own application. Windows App, from the Mac App Store.
Linux A FreeRDP client (xfreerdp3 or xfreerdp) launched as its own external window, the same pattern Mosh uses. FreeRDP from your package manager.

The window-embedding interface the Windows tab depends on has no counterpart on macOS or Linux, so on those platforms the connection is handed to the best available client instead. You keep the same saved connection, the same host and the same domain; what differs is that the session is a separate window rather than a tab. Everything else — SSH, Telnet, RSH, Mosh, FTP, S3, hypervisor VNC consoles, MCP and the AI — behaves identically on all three platforms.

On macOS, Windows App renders natively and with hardware acceleration, and it handles a server-side stuck-session case that the FreeRDP builds for macOS do not.

Two credential notes follow from opening the session in an external client:

  • On macOS, the password is deliberately not written into the generated .rdp file. Windows App prompts you for it instead, which keeps the credential out of a file in the clear.
  • On Linux, the password is passed to xfreerdp on its command line, because that is the only non-interactive way the client accepts one. It is therefore visible to anything on that machine that can list your own processes. If that matters in your threat model, leave the password field empty and let the client prompt.

If the client is missing, the connect attempt fails with the install step rather than a generic error — the Mac App Store for Windows App, or your package manager's FreeRDP package on Linux.

RDP certificate handling

Certificate handling for RDP is being finalised ahead of general availability. If an RDP connection will not open, confirm the target allows RDP and that your credentials are valid, then see Troubleshooting.

VNC

VNC has a target selector, and it decides what kind of session you get:

  • Direct VNC host — host, port (5900 by default) and a password. This opens your system's own VNC viewer as an external application.
  • Hypervisor VM — KVM or Hypervisor VM — OpenStack — a virtual machine's console reached through its hypervisor. These are embedded, as a normal OpsPilot tab, on all three platforms, with the guest's clipboard bridged to yours. This is the path covered in Hypervisor consoles, and it is the one to use for a VM that will not boot or has no SSH.
