Hypervisor consoles

A VNC connection can attach to a virtual machine's console through its hypervisor, rather than to a VNC server running inside the guest. That is what you need when a machine will not boot, has lost its network configuration, or has no SSH at all. You get the console the same way you would from the hypervisor's own dashboard, in the same workbench as everything else, and certificate trust is decided in one place.

Two backends ship:

Backend How it reaches the console
KVM / libvirt SSH to the host, then virsh
OpenStack (Nova) REST over HTTPS — Keystone for authentication, Nova for instance listing and console tickets

Both open as an embedded session inside OpsPilot, in a normal tab. Pick the backend with the target selector at the top of a VNC connection, before you fill anything else in, because the selector changes what the fields below it mean.

KVM and libvirt

Set the target to Hypervisor VM — KVM. The host, port, username and authentication fields above the selector become the KVM host's own SSH login — not a VNC endpoint. Password and private key authentication both work, exactly as they do for an SSH connection.

Click List VMs and OpsPilot enumerates the host's guests through virsh, running and stopped, with their state. Pick one and it is stored on the connection, so reconnecting later does not mean listing again. Attaching then resolves the guest's VNC display on the host and tunnels to it over SSH. The guest's own network configuration is not involved, which is why this works on a machine that has lost it.

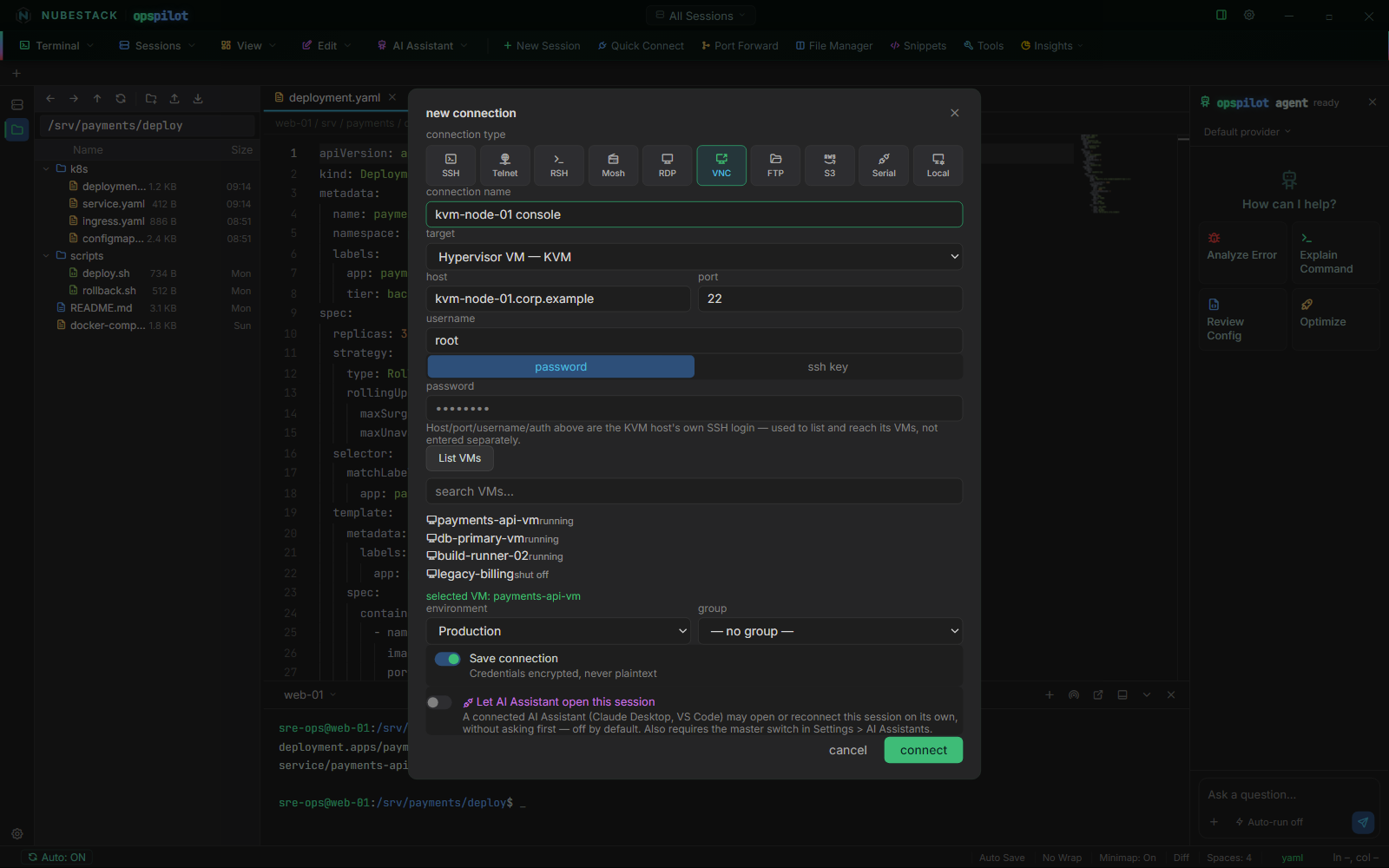

Creating a KVM hypervisor console connection with the VM list populated

Target set to Hypervisor VM — KVM. The host and credentials above are the KVM host's SSH login; List VMs has enumerated the guests through virsh, including the ones that are shut off.

Attaching can fail for three reasons, and each is reported with the hypervisor's own error text rather than a generic message:

  • virsh is not installed, or the SSH user is not permitted to talk to qemu:///system. The fix differs — install the libvirt client, add the user to the libvirt group, or connect as a user who already has access.
  • The VM is not running. A console needs a running domain.
  • The VM has no VNC console configured in its libvirt XML. There is nothing to attach to.

OpenStack (Nova)

Set the target to Hypervisor VM — OpenStack and you get a separate authentication panel, because Keystone credentials have nothing in common with an SSH login.

Fill in:

  • auth URL (keystone) — your Keystone v3 endpoint.
  • password or app credential — the two authentication methods supported. Password authentication takes a username, a user domain, a project and a project domain. An application credential takes an ID and a secret, and needs no separate scope, because an application credential is already scoped when it is created. Both domain fields accept a domain name or a domain ID.
  • region — optional. If you name a region and no compute endpoint matches it, the attempt fails rather than quietly showing a different region's instances.
  • Skip TLS certificate verification (self-signed / internal CA cert) — one explicit checkbox, off by default. Self-signed and internal-CA certificates are common in a private OpenStack cloud, and this is the single place certificate trust for the connection is decided.

List VMs queries Nova for the project's instances and normalises their status into the same vocabulary the KVM list uses. OpsPilot then requests the console ticket from Nova itself and connects through that, so there is no URL to copy out of Horizon and no token to paste anywhere.

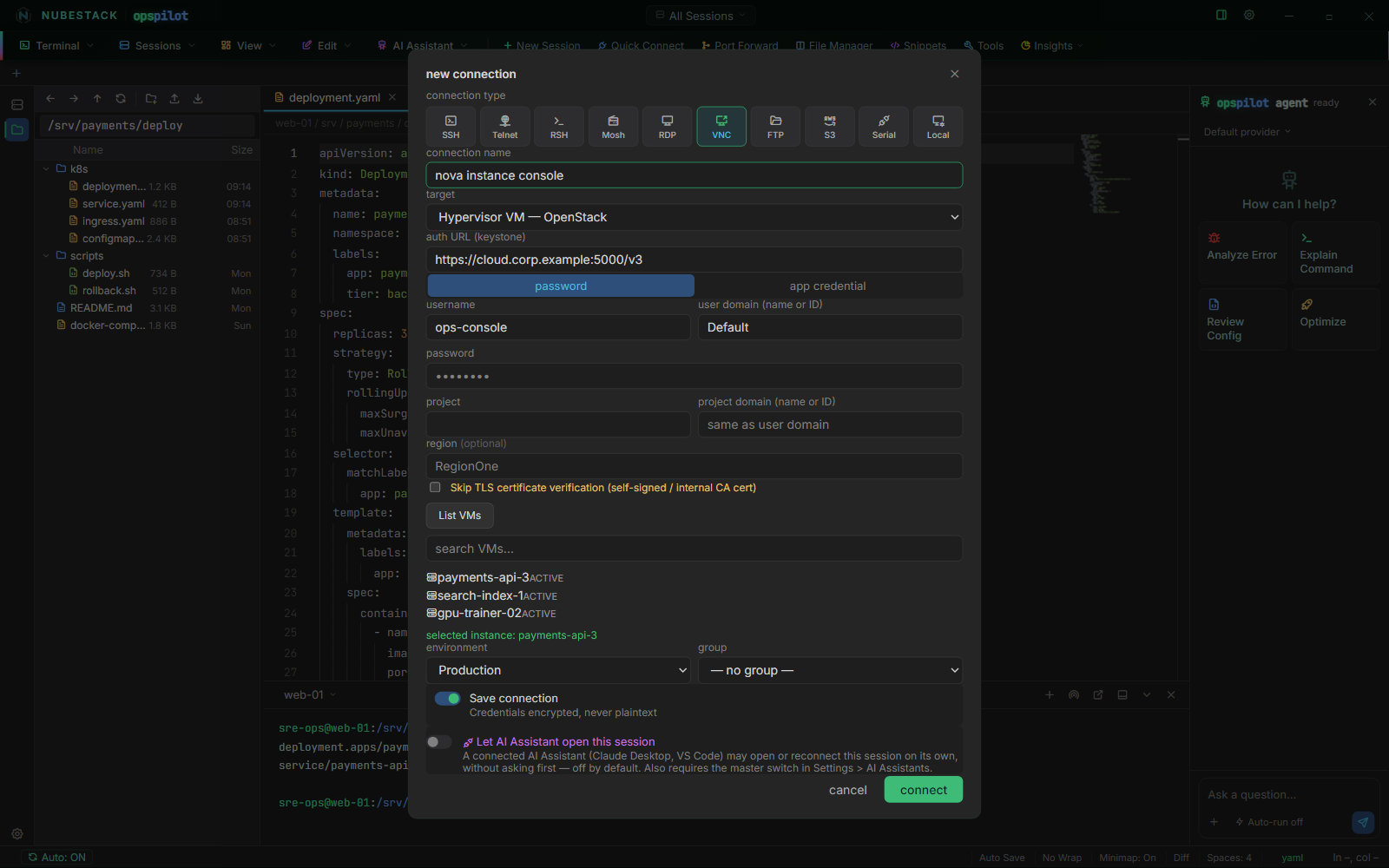

Creating an OpenStack Nova console connection showing Keystone authentication and the instance list

Target set to Hypervisor VM — OpenStack. Keystone authentication has its own panel, the TLS checkbox is the single place certificate trust is decided, and List VMs has queried Nova for the project's instances.

OpsPilot re-authenticates to Keystone on each call rather than holding a token, so a long-lived connection does not fail later because a token expired. If Nova refuses the console request — the instance is gone, or the cloud does not offer remote console access — the error comes back as Nova worded it.

Guest console passwords

Reaching a console through the hypervisor authenticates you to the hypervisor. If the VM's graphical console has its own VNC password, that is separate, and you are prompted for it when the console asks.
